P2.5mm LED module is very popular in the LED industry. With the advancement of led display technology and the expansion of the led display market, P2.5 LED modules are widely used on various occasions that require high picture quality. Such as conference rooms, monitoring rooms, and other places that require close-up viewing distance. With the characteristics of a high refresh, high contrast, and high resolution, it has captured the hearts of the public. This article will introduce some basic knowledge about P2.5 led module, including types, features, applications, and prices, to help you quickly buy the products you want.

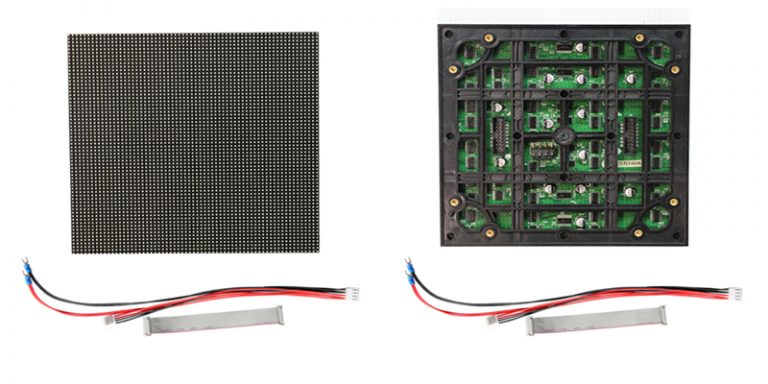

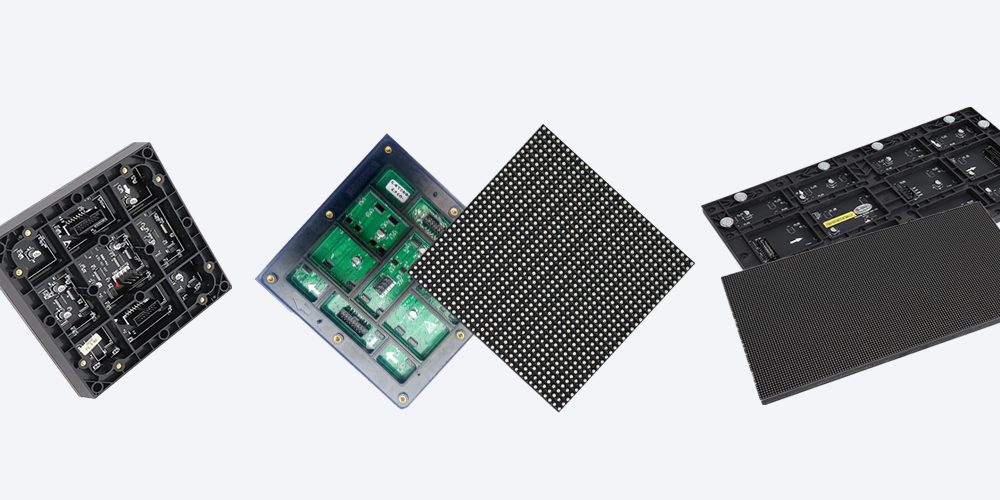

P2.5 indoor led module 160mmx160mm
High Refresh rate indoor LED Screen Panel
High-quality full color SMD indoor LED display module
Including the Data Power Cables and 2 Years Warranty
Best Contrast and Color uniformity
P2.5 outdoor led module 160mmx160mm
High reliability and contrast,wide view angle and good consistency
High-quality full color SMD outdoor LED display module
Best Driving IC,such as MBI5124,ICN2038 with high refresh rate,high grey level with latest technology
P2.5 soft flexible led module 240mmx120mm
High strength compression resistance and anti-twist ability
Low maintenance cost, high brightness, low dead light rate, energy-saving, seamless splicing
It can be customized in any shape
Ultra-light and ultra-thin screen

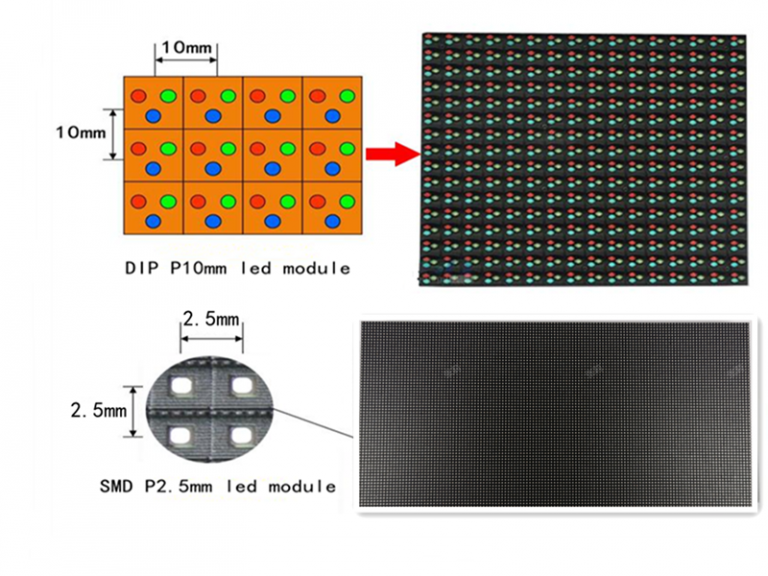

What is the LED module?
As we all know, the area of a LED video wall can usually reach tens of squares or even hundreds of squares. The giant screen LED screens consist of many LED modules. The modular design facilitates the installation, transportation, and maintenance of the large LED screen. More importantly, you can get large led screen solutions of any size without difficulty. Therefore, P2.5 led panel is popular in the led display industry.


At the same time, modules of various sizes can be adapted to cabinets with different sizes. Below is the size table of the DR- P2.5 led module.
Pixel picth | Module types | LED | Module Size(mm) | Module Resolution | Driving Mode | Brightness(Nits) |
P2.5 mm | Indoor led module | 2121 (Black LED) | 320*160 | 128*64 | 1/32Scan | 800-1000 |
240*240 | 96*96 | |||||
160*160 | 64*64 | |||||
Outdoor led module | SMD1415 | 160*160 | 64*64 | 1/16Scan | >5500 | |
Flexible led module | SMD1515 | 240*120 | 96*48 | 1/24Scan | 700-900 | |
320*160 | 128*64 | 1/32Scan | ||||

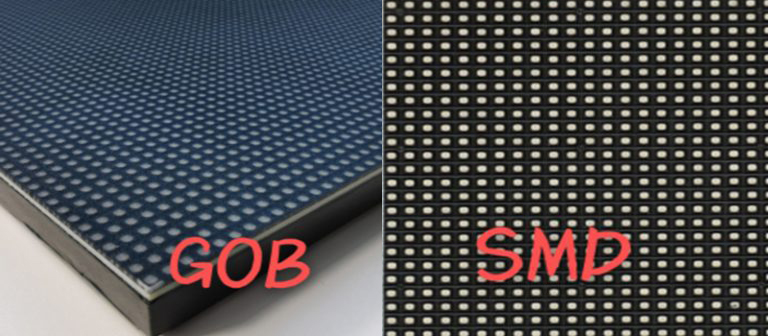

GOB led module | 2121 (Black LED) | 320*160 | 128*64 | 1/32Scan | 800-1000 | |
240*240 | 96*96 | |||||
160*160 | 64*64 |
Additional instructions:
- Buy our LED module. Accessories include data cable and power cable.
- The LED module has strong compatibility and can be matched with LED control cards of Linsn, Novastar, Colorlight, Xixun, and other brands.
- 2 years warranty, 5% free spare parts.
P2.5 soft led modules have a high refresh rate and wide viewing angle. It is suitable for all kinds of creative architectural design schemes, such as hotel halls, bars, science and technology museums, playgrounds, theme restaurants, etc. Want to know more affordable soft flexible LED module prices? Welcome to contact us.
6. Indoor DR-P2.5 LED Module Specification
Model | DR-P2.5-I-96X96 | ||||||
1.LED | |||||||
Color | Package | Intensity | View Angle | Wavelength | Test Cond. | ||
Red | SMD 2121 | 150mcd | 140/140 | 620nm | 25℃,20mA | ||
Green | SMD 2121 | 400mcd | 140/140 | 520nm | 25℃,20mA | ||
Blue | SMD 2121 | 100mcd | 140/140 | 470nm | 25℃,20mA | ||
Resolution | 96(H)×96(V) | ||||||
Pitch | 2.5mm | ||||||
LED Arrangement | SMD2121 | ||||||
Driver Mode | Dynamic 1/32 Duty constant current | ||||||
Size | 240mm×240mm | ||||||
Mask | Pure Black mask-high contrast screen | ||||||
3.Electricity Parameter | |||||||
Optical Ratings | |||||||
Brightness | ≥1000cd/㎡ | ||||||
View Angle | 140 degree ( horizontal) 140degree(vertical) | ||||||
View Distance | 2.5m-25m | ||||||
Gray Scale | 8bits input, correction with 16bits | ||||||
Display Color | 16.7M | ||||||
Brightness Adjustment | 100 levels | ||||||
Power Supply | |||||||
Operation Power | AC100-240V 50-60HZ Switch-able | ||||||
Maxim Power Consumption | 700 W/m2 | ||||||
Average Power Consumption | 300 W/m2 | ||||||
Control System | |||||||
Correction Scale Level | 16bits | ||||||
Frame Update Frequency | 60Hz | ||||||
Screen Refresh Frequency | 480-960Hz | ||||||
Gamma Correction | -5.0—5.0 | ||||||
Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI | ||||||
Control Distance | Ethernet cable 100m, optical fiber 5km | ||||||
Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 | ||||||
Color Temperature | 5000-9300 adjustable | ||||||
Brightness Correction | dot by dot, module by module, cabinet by cabinet | ||||||
Reliability | |||||||
Operating Temp. | -20-60 Celsius degree | ||||||
Operating Humidity | 10-95% RH | ||||||
Operating Life | 100,000 hours | ||||||
MTBF | 5000 hours | ||||||
Continuous Working Time | ≥48 hours | ||||||
Protection Level | IP54 | ||||||
Out of Control Pixel Rate | 0.01% |
