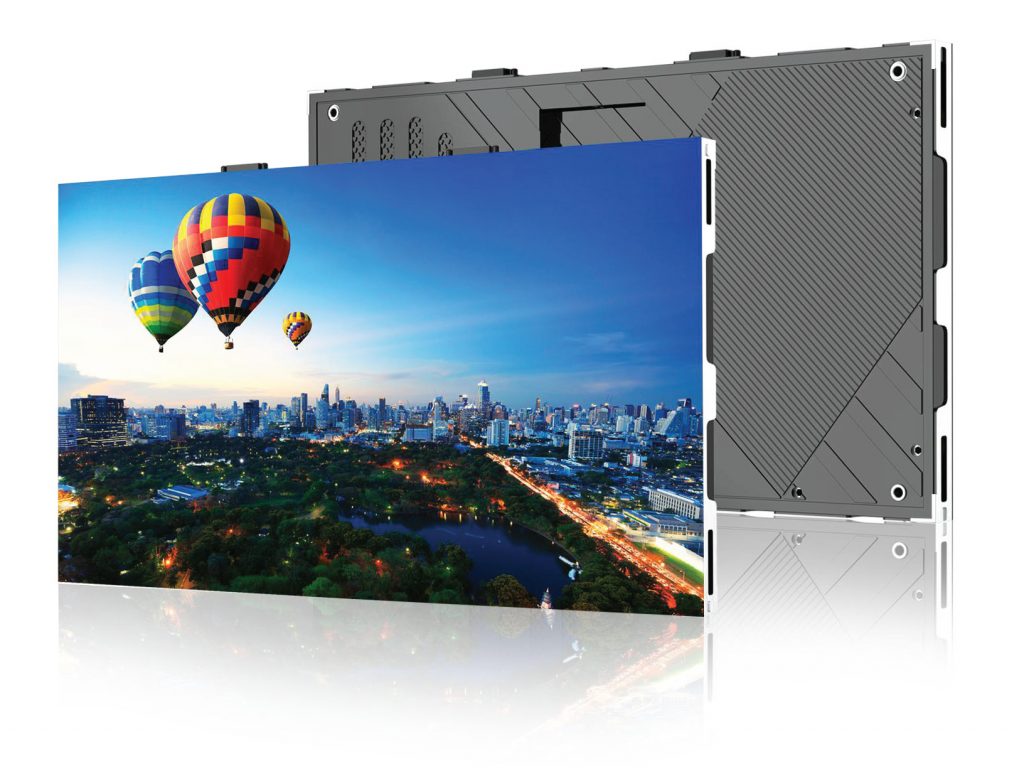

600x337.5mm 16:9 HD LED Display DR-169F3 Series

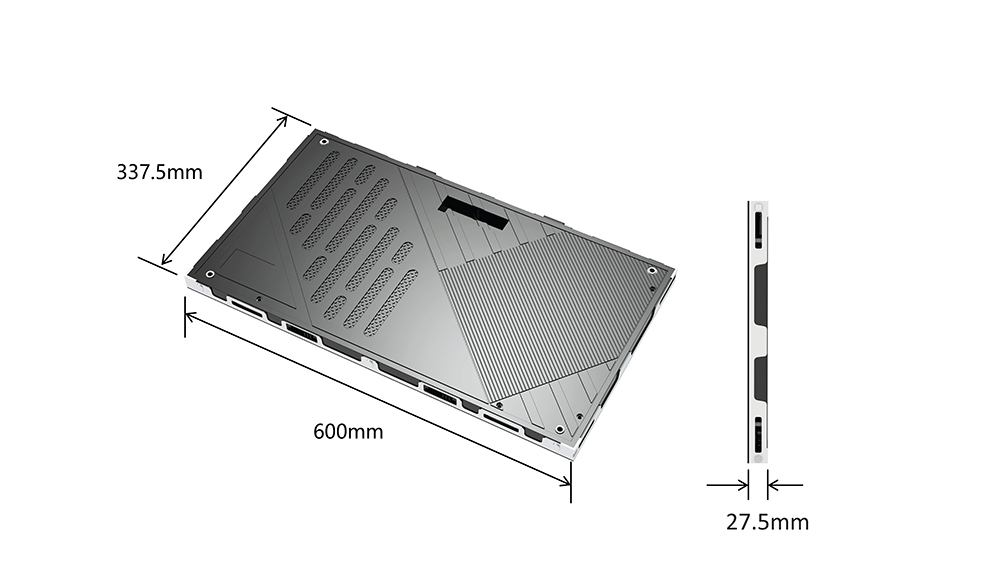

16:9 Cabinet Design
DR-169F3 Series 16:9 LED display with Cabinet’s 16:9 resolution, Perfect replacement for LCD display.Dot-to-dot correction technology provide you pure image with great gradation.

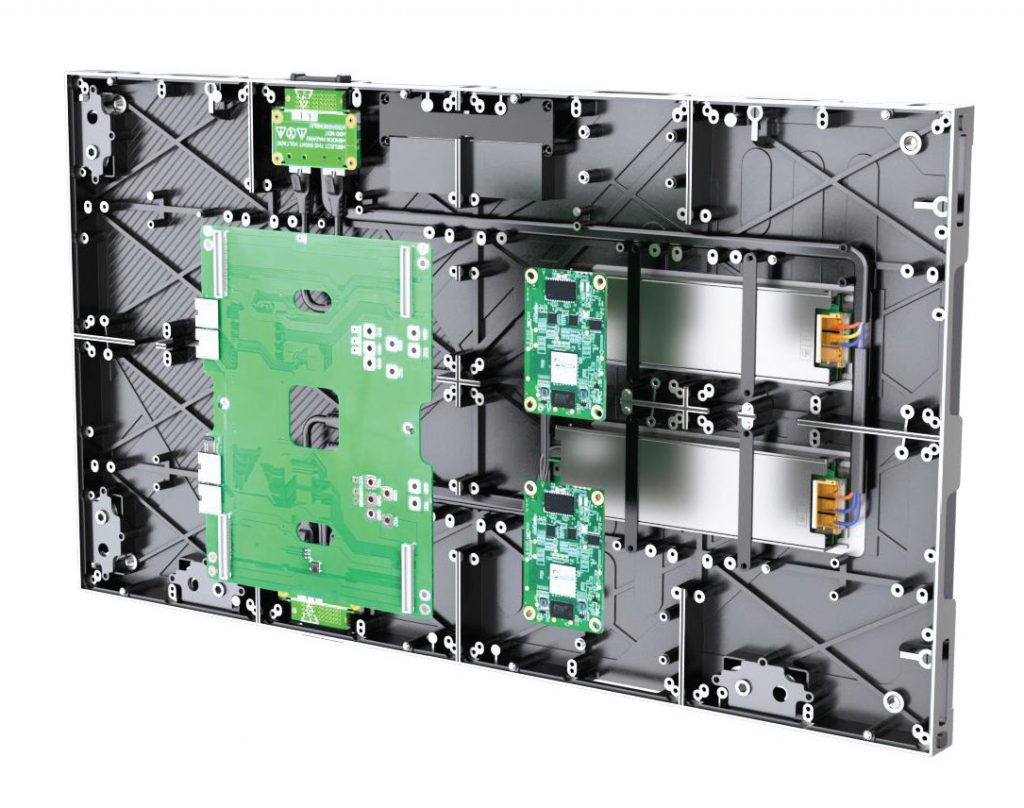

Dual card dual electric
Configurable dual backup version to ensure uninterrupted power supply。
Signal not lost, more stable and reliable。

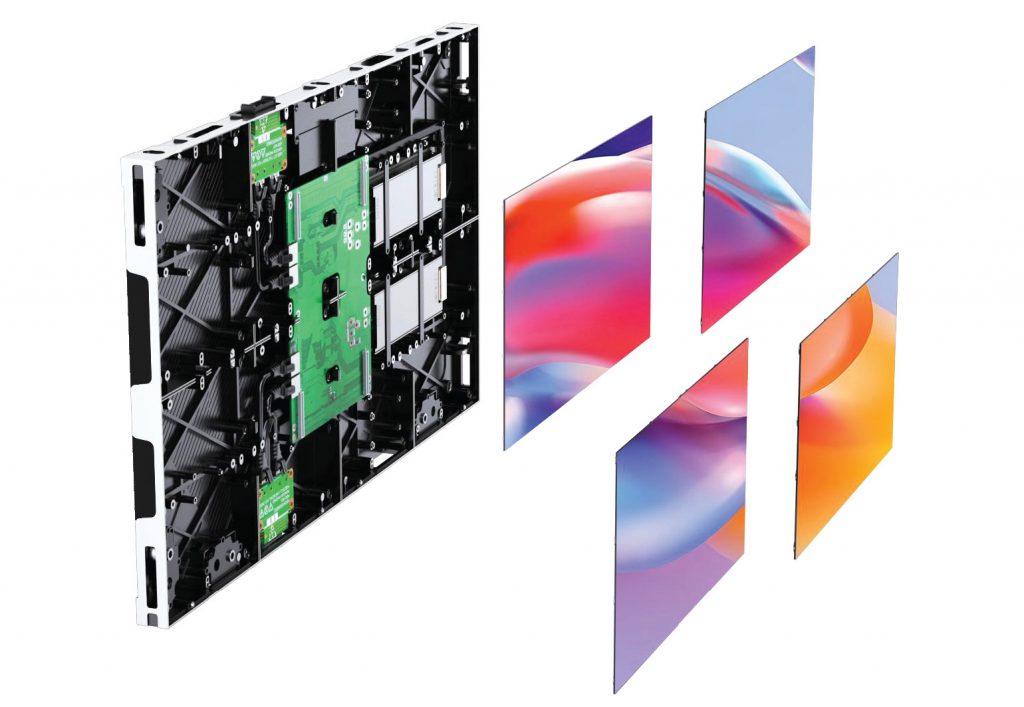

Front Service
The DR-169F3 series LED display is suitable for full front-end service design, it is easy to maintain,saving on-site time and labor. The LED modules are assembled on the front and are magnetic.
16K HD Visual Experience
With a cabinet ratio 16 : 9, the DR169F3 Series LED display is bespoke in size,flexible in installation and compatible with all the prevailing video formats, making it easier to create FHD, 2K, 4K, 8K and 16K video wallt.

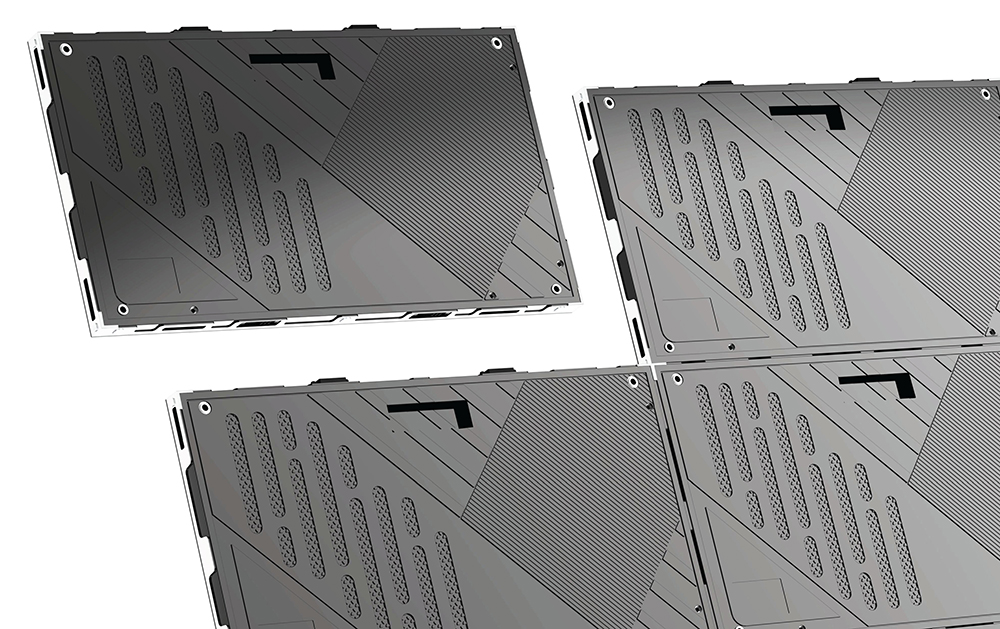

Seamless Splicing
Die-casting Alumium Cabinet sctructure with CNC high-precision processing(Flatness of Cabinet≤0.1mm)Screwless design for faster and more secure installationSuper silent fanless design

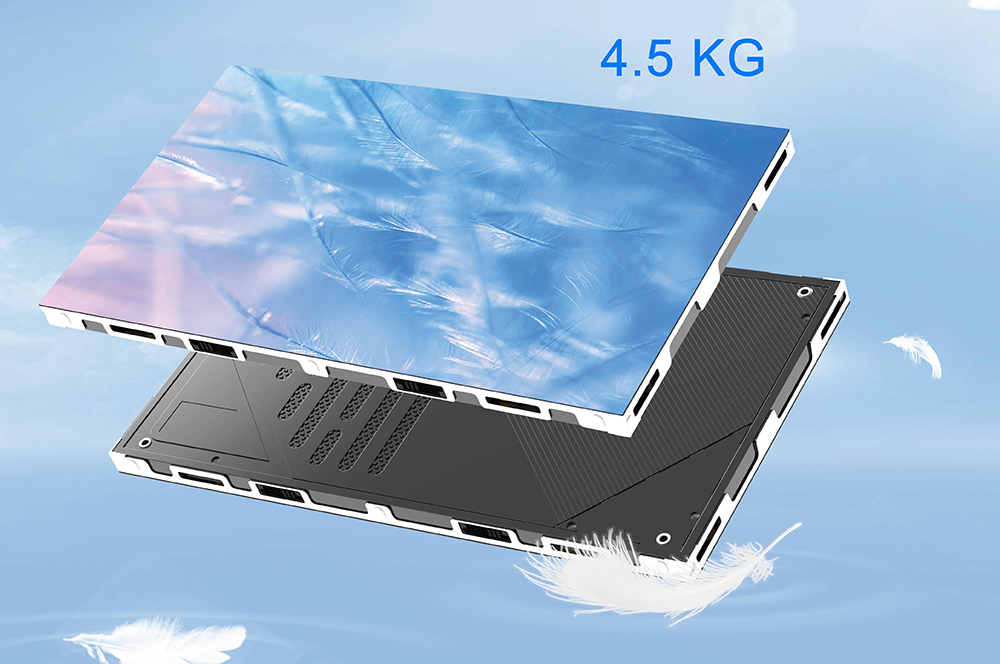

Ultra Light Weight Cabinet
The DR-169F3 Series LED display weight Only 4.5kg, easy for transport, save your labor cost,also light weight is convenient for installtion, assembly and disassembly.
Wide Viewing Angle
Viewing angle is up to 170° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area.It offers you clear and natural images in all directions.
600×337.5mm 16:9 HD LED Display DR-169F3 Series Parameter
| Pixel Pitch (mm) | P0.78125 | P0.9375 | P1.25 | P1.5625 | P1.875 | P2.5 |
| Pixel Configuration | COB | COB | SMD1010 | SMD1515 | SMD1515 | SMD1515 |
| Density (Pixels/㎡) | 1638400 | 1137778 | 640000 | 409600 | 284444 | 160,000 |
| Module Resolution (Pixel) | 192×216 | 160×180 | 240×135 | 160×108 | 160×90 | 60×135 |
| Module Size (mm) | 150×168.75 | 150×168.75 | 300×168.75 | 300×168.75 | 300×168.75 | 150×337.5 |
| Driving Mode (Duty) | 1/64 | 1/60 | 1/45 | 1/48 | 1/45 | 1/30 |
| Cabinet Size (mm) | 600X337.5X27.5 | |||||
| Cabinet Weight (KG) |
4.5 |
|||||
| Brightness (CD/㎡) | ≥600 | |||||
| Viewing Angle (°) | 170 | |||||
| Gray Grade (Bits) | ≥16 | |||||
| Operation Power |
AC90-264V,47-63Hz |
|||||
| Max. Power Consumption (W/㎡) | ≤ 350 | ≤ 350 | ≤ 350 | ≤ 350 | ≤ 350 | ≤ 350 |
| Avg. Power Consumption (W/㎡) | 100 | 100 | 100 | 100 | 100 | 100 |
| Frame Frequency (Hz) | ≥60 | |||||
| Refresh Frequency (Hz) | ≥3,840 | |||||
| Working Temperature (ºC) | -20～+60 | |||||
| Lifetime (Hours) | 100,000 | |||||
| Protection Grade | IP31 | |||||
